Precision Metal Stamping
Solutions.
SS304 · Aluminum · Copper · Galvanized Steel.
We manufacture precision metal parts from 0.05mm to 3.0mm wall thickness. If it's deep drawn or stamped, we can build the tooling and run the production — from prototype to 10M+ pcs.
Our Hard Promises.
12-Hour DFM Feedback — Free with Every Inquiry
Send your 2D/3D drawings and we return a DFM report within 12 hours — identifying wall thickness risks, tooling constraints, and tolerance conflicts. We flag problems before you commit to tooling cost. No charge, no obligation.
Full Material Range — SS, Aluminum, Copper, Brass
SS304/316/316L, Aluminum 1060/3003/5052/6061, Copper C110/C260, Brass C260/C360 — all in active production. If your drawing specifies a grade, we quote it. If your grade is unlisted, send the drawing and we assess it. Our DFM engineers confirm material feasibility within 12 hours.
Specs Other Factories Decline — We Quote Them
Wall thickness: 0.05mm (SS), 0.08mm (copper), 0.1mm (aluminum). Tolerance: ±0.01mm. Draw ratio: up to 10:1 for aluminum. Can't achieve a small enough radius with standard stamping? We use multi-stage deep drawing for zero-gap fit. Surface finish matters? We specialize in #4 brushed SS and defect-free anodized aluminum.
Selected Components
from Active Production Runs.
Each product below is drawn from a current or recent production run. Specifications are as-manufactured — material grade, wall thickness, tolerance, and surface finish are all documented and repeatable.
Fire Door Escutcheon — ASSA ABLOY Supply
SS304 Escutcheon: #4 Brushed Finish, wall thickness 0.8 mm, tolerance ±0.01 mm. Engineered for global architectural standards.
ASSA ABLOY's fire door hardware demands absolute surface consistency — the #4 brushed finish must be uniform across every batch, with zero directional variation. Our progressive die stamping process achieves ±0.01mm dimensional tolerance and a consistent Ra ≤ 0.8μm surface roughness. Parts are supplied with full material certificates and CMM inspection reports.
Four Pillars of Trust.
Industry Agility
Proudly serving Medical, Automotive (EV), Electronics, and Luxury Packaging sectors. We understand the specific standards, tolerances, and documentation requirements of each industry — from PPAP for automotive to material traceability for medical.
Quality Assurance
ISO 9001:2015 certified processes. Every batch includes material certifications (mill certs), dimensional inspection reports, and surface treatment records. CMM inspection available for critical dimensions. Full traceability from raw material to finished part.
Engineering Partnership
We act as your extended R&D team in China. Our engineers provide DFM feedback, tooling design recommendations, and prototype iteration support. We speak the language of engineering — GD&T, draw ratios, springback compensation, and work-hardening curves.
IP Protection
Strict NDA protocols to safeguard your new product developments. We sign NDAs before reviewing any drawings. Your designs are stored in a secure, access-controlled system. We do not share customer designs with third parties under any circumstances.
Technical Capability Grid.
Need a process or material not listed? Submit your drawing — we assess every project individually.
Custom Deep Drawing & Stamping from Active Production
Complex, large-format, and multi-material parts drawn from current production runs. Specifications are as-manufactured.
SS304 · Structural Stamping
Precision SS304 Multi-Bend Bracket: 1.5 mm wall, compound die with simultaneous pierce + form, #4 satin finish, deburred edges, tolerance ±0.05 mm.
Beryllium Copper · High-Speed Progressive Die
BeCu Spring Contact Reel: 0.052 mm wall, progressive die at 400 spm, intricate punched geometries, consistent spring-tension forming, tin-plated for solderability.

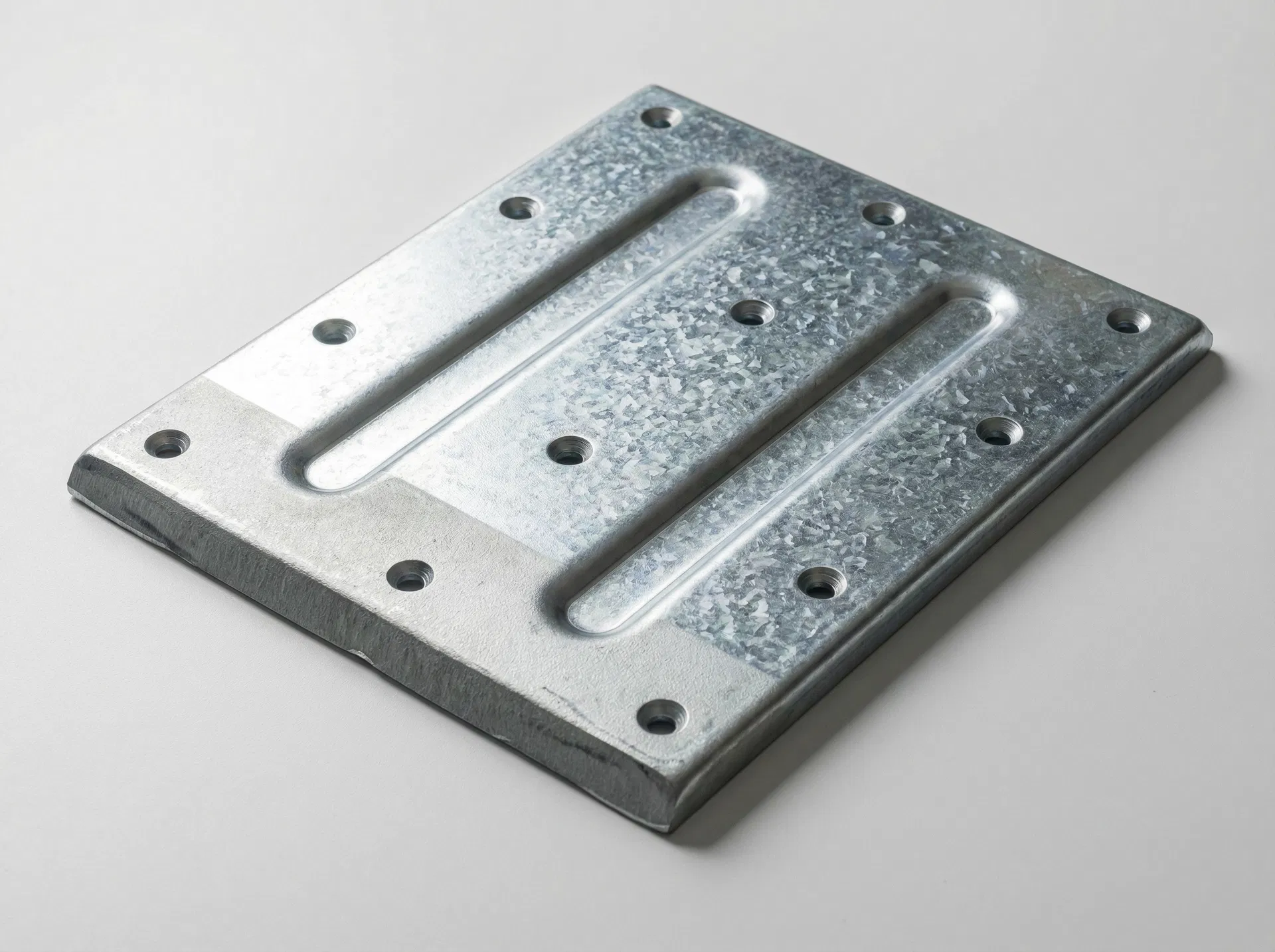

Galvanized Steel · Heavy-Duty Stamping
Heavy-Duty Galvanized Mounting Plate: 3.0 mm thick, countersunk holes in precision grid, reinforced structural ribs, zinc-coated for corrosion resistance. Up to 4 mm thickness available.
6061 Aluminum · Precision Aesthetic Stamping
Brushed Aluminum Faceplate: 6061-T6, #4 satin finish, intricate ventilation slot arrays, precision-machined mounting holes, Type II anodized for scratch resistance.
Ready to Prototype
or Scale?
Upload your STEP/IGS/PDF files. Our engineers will provide a free DFM analysis to ensure your design is optimized for manufacturing — regardless of material or complexity.
Get your DFM report in 24 hours. No automated responses — every inquiry is reviewed by a senior stamping engineer with 10+ years of experience.
Get a Free Quote Today
Custom Stamping & Deep Drawing · All Materials · Free DFM
Your IP is protected by our standard NDA. Real engineers review every submission. Quote and DFM feedback delivered within 1 business day. Exporting to USA, EU, and all major markets.
